Anti Vibration Conical Mounts: Professional Solution for Vibration Control

Anti vibration Conical mounts are designed to absorb and dampen vibrations, shocks and mechanical stresses on industrial machinery, heavy vehicles, plants and transport systems. Their main function is to ensure structural stability, extend the useful life of equipment and improve operational safety.

Composition and Structure of Conical Anti Vibration Mounts

Anti vibration conical mounts consist of two conical bushings connected by an elastomeric rubber body. The structure is completed by two washers, one for stopping and one for centring. These elements serve to limit movement in the event of impact and ensure controlled behaviour during load peaks.

The rubber used in production can be of various compounds, typically NR/SBR, with a standard hardness of 60 Sh and a tolerance of ±5 Sh. Versions with different hardnesses are available on request. The metal part is made of galvanised steel, but other metal alloys can be used depending on the application requirements. These components are used in numerous industrial sectors where vibration reduction is essential. Thanks to their particular geometry and the quality of the materials used, Conical Anti-Vibration Mounts are ideal for applications that require high performance in terms of vibration isolation and mechanical resistance.

Why Choose Anti Vibration Conical Mounts?

Anti-vibration conical mounts are not just components: they are engineering solutions designed to improve the efficiency, safety and durability of your equipment. Their conical design, which combines high axial vibration absorption capacity with optimal radial stability, makes them indispensable in complex operating environments. Whether you manage an industrial production line, a ventilation system or a heavy vehicle, these mounts help reduce wear, improve comfort and optimise performance.

Key Advantages of Anti Vibration Conical Mounts

Larosi SRL’s conical anti-vibration mounts stand out for a number of features that make them an excellent choice for your applications. Here are the main benefits:

Versatility for Every Sector

Our conical anti-vibration mounts are designed to adapt to a wide range of applications. They are perfect for:

• Industrial motors and compressors, where they reduce vibrations to protect mechanical components.
• HVAC systems, ensuring quiet and stable operation.
• Vehicle and train cabins, improving comfort for operators.
• Cooling and ventilation systems, for optimal energy efficiency.
• Agricultural equipment, such as tractors, for greater precision and durability.

Superior Durability and Quality

Made from high-quality materials, such as high-dissipation natural rubber and galvanised or stainless steel, our conical vibration mounts are designed to withstand harsh operating conditions. The combination of these materials ensures long life, even in environments subject to corrosion, high temperatures or heavy loads. This means less maintenance and reduced costs for your business in the long run.

Customisation for Specific Requirements

Thanks to our experience and wide range of products, we can offer you the right product for every requirement, with the option of customisation and dedicated customer service. Every project is unique, which is why we offer conical vibration dampers in different configurations and hardnesses. You can choose from:

• Rubber hardness: 45, 55 or 65 Shore A, to suit the required level of absorption.
• Thread configurations: Male/male, male/female or female/female, for optimal compatibility with your equipment.
• Customised dimensions: Lengths and diameters of threaded pins tailored to meet specific requirements.

Our technical team is available to work with you and develop customised solutions, ensuring that each conical vibration mount meets your exact requirements.

Ease of installation

The conical design of our anti-vibration mounts not only guarantees excellent performance, but also makes installation quick and easy. Thanks to their structure, they offer high axial deflection capacity while maintaining radial stability that reduces the risk of unwanted movement. This translates into reduced machine downtime and hassle-free installation, even for complex applications.

Technical Support for Your Needs

Choosing the right anti vibration conical mount can make all the difference to the success of your project. That’s why our team of experts is always on hand to offer you personalised technical advice. Whether you’re an engineer looking for detailed technical specifications or a purchasing manager who needs quick and reliable solutions, we’re here to help. We can guide you in choosing the most suitable hardness, configuration and dimensions, ensuring that the product meets your expectations. In addition, we offer the possibility to request samples or technical data sheets to evaluate our conical vibration dampers before purchasing.

Range of Anti vibration conical mounts

Applications of Anti Vibration Conical Mounts: Versatile Solutions for Every Industry

Anti vibration conical mounts are designed to meet the needs of different sectors, ensuring reliable performance and long life in critical applications. Thanks to their advanced design, which combines high-dissipation rubber with robust metal components, these mounts effectively reduce vibrations and shocks, improving the efficiency, safety and comfort of equipment.

Industrial Machinery

Larosi Srl’s anti vibration conical mounts are the ideal choice for industrial machinery such as compressors, motors and pumps. In production environments, vibrations can cause premature wear, excessive noise and malfunctions. Our conical mounts absorb vibrations, protecting mechanical components and extending the useful life of equipment.

Main applications:

• Industrial compressors for production lines.
• Heavy machinery engines, such as those used in manufacturing.
• Hydraulic or pneumatic pumps, where stability is essential.

Thanks to our ability to customise hardness (e.g. 45, 55 or 65 Shore A) and thread configurations, we can provide tailor-made solutions that optimise the performance of your machinery while reducing maintenance costs.

HVAC and Refrigeration

In the HVAC and refrigeration sector, vibration reduction is essential to ensure quiet operation and optimal energy efficiency. Our conical vibration isolators are designed to support air conditioning, ventilation and refrigeration systems, minimising noise and improving comfort in the environment.

Main applications:

• Air conditioning systems for commercial and residential buildings.
• Industrial ventilation units, where vibrations can compromise performance.
• Refrigeration systems for warehouses and food industries.

With our wide range of products and fast delivery options, Larosi SRL is the ideal partner for those looking for reliable anti-vibration solutions for the HVAC sector, guaranteeing quick installation and long-lasting results.

Naval sector

In the naval sector, anti vibration conical mounts play a crucial role in improving comfort on board and protecting equipment from harsh marine environments. Used as supports for marine engines, these components reduce vibrations, minimise wear and tear and increase safety for the crew.

Main applications:

• Marine engines for pleasure craft or commercial vessels.
• Naval propulsion systems, where stability is essential.
• Vibration-sensitive on-board equipment, such as generators or pumps.

Our conical vibration dampers, made from corrosion-resistant materials such as stainless steel, are designed to withstand marine conditions, ensuring reliable performance even in the open sea.

Automotive and Railway

In the automotive and railway sectors, conical vibration dampers improve the stability and comfort of vehicles and trains by reducing vibrations in suspensions and critical components. These supports are essential for ensuring safety and precision, especially in heavy-duty applications.

Main applications:

• Suspensions for heavy vehicles, such as trucks and buses.
• Railway systems, to reduce vibrations in carriages and locomotives.
• Off-road vehicle components, where working conditions are particularly intense.

Our experience allows us to offer customised conical vibration dampers, tailored to the specific needs of each vehicle, with fast delivery times to minimise downtime.

Agricultural Machinery

In the agricultural machinery sector, conical vibration dampers improve operator comfort and equipment precision by reducing vibrations in tractors and heavy machinery. This translates into greater efficiency and less wear on components.

Main applications:

• Agricultural tractors, for a more comfortable working experience.
• Agricultural equipment, such as combine harvesters and seeders, where stability is essential.
• Irrigation systems and agricultural pumps, for smooth operation.

Dynamic Performance and Safety

A distinctive feature of Conical Anti-Vibration Mounts is their linear and progressive deflection curve, which allows them to handle increasing loads without compromising the structural integrity of the component. In the event of overload, the mounts are capable of withstanding up to three times the nominal load, ensuring system safety.

The metal tension and compression washers prevent sagging and protect the natural rubber from impact, ageing and oil dripping. This allows for a long operating life even in mechanically critical conditions.

The rubber used in production can be of various compounds, typically NR/SBR, with a standard hardness of 60 Sh and a tolerance of ±5 Sh. Versions with different hardnesses are available on request. The metal part is made of galvanised steel, but other metal alloys can be used depending on the application requirements. These components are used in numerous industrial sectors where vibration reduction is essential. Thanks to their special geometry and the quality of the materials used, Conical Anti-Vibration Mounts are ideal for applications that require high performance in terms of vibration isolation and mechanical resistance.

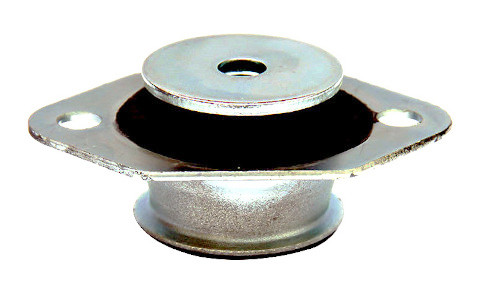

Slotted Variant of Anti Vibration Conical Mounts

For special requirements, a slotted version of the Anti Vibration Conical Mounts is available, featuring slots in the elastomeric part. These slots allow for differentiated mechanical behaviour, offering variable vertical and horizontal stiffness and superior vibration absorption.

This configuration is particularly useful when a high degree of axial deformability combined with controlled radial rigidity is required. Slotted mounts are ideal for environments with high dynamic stress or for installation on machines with uneven vibrations.

How to choose the most suitable conical anti-vibration mounts

The correct choice of conical anti-vibration mounts depends on several technical factors that should not be overlooked. The main parameters to be evaluated include the maximum static load, the hardness of the rubber, the geometric dimensions (height, diameter, hole centre distance) and the type of mounting required. For applications on vehicle cabins, for example, it is essential that the Conical Cabin Anti-Vibration Mount offers controlled axial deflection and good radial rigidity. The material is also important: some compounds are more resistant to oils, ozone or chemicals. Our technical team is available to help you select the most suitable mount for your conditions of use, so as to avoid compatibility errors and achieve optimal performance.

To facilitate selection and offline consultation, Larosi provides a complete PDF catalogue of Conical Anti-Vibration Mounts, with detailed technical data sheets, available sizes, supported loads, variants with slots, rubber hardnesses and dimensioned technical drawings. The file also includes equivalence tables with the main brands in the sector, to facilitate the replacement of existing products. By downloading the catalogue, you can consult it conveniently in the workshop, with or without an internet connection. The download is free and does not require registration. Click on the link in the ‘Downloads’ section or contact us to receive a copy by email.

Ready for delivery in 24 hours: Larosi’s signature speed

With over 1,000,000 items in stock at our warehouse in Padua, Larosi guarantees immediate availability for all models of Conical Anti-Vibration Mounts. Orders received by 11:00 a.m. are shipped the same day, allowing for delivery within 24-48 hours throughout Italy. This service is particularly appreciated by bearing retailers, industrial hardware stores and repair centres, which need parts to be available quickly so as not to halt production for their end customers. Our logistics system is optimised to speed up every stage, from order processing to packaging and tracked shipping.

Complementary products compatible with anti vibration mounts

Larosi is your point of reference for the entire industrial subcontracting chain. In addition to Anti Vibration Conical Mounts, we offer a wide range of sealing rings, gaskets, transmission couplings, air springs and semi-finished technoplastic products, all available for immediate delivery. In particular, for each Conical Cabin Anti-Vibration Mount, we offer compatible components such as mounting plates, high-strength screws and compression washers, optimised for easy integration into any type of system. By ordering multiple products from the same supplier, you reduce management time, cut logistics costs and simplify the work of your purchasing department.

Immediate and reliable technical support by phone

In addition to the quality of its products, Larosi Srl stands out for its dedicated technical support service, designed to help retailers and industrial buyers choose the most suitable conical anti-vibration mounts. Our team, made up of technical staff with decades of experience, is available to quickly answer questions about measurements, loads, compatibility and assembly. No waiting, no red tape: just one phone call is all it takes to get the right answer. This direct support represents added value for our business partners, who can in turn offer a more efficient service to end customers, reducing downtime and costs.
