Cone bearing for vehicle cabins is a conical device designed to effectively dampen vibrations and noise. Made of natural rubber and galvanized steel, it offers optimal stability and resistance. Ideal for cabins, industrial machinery, and mechanical applications, it ensures a secure and durable fastening. Available in different hardnesses, it adapts to specific needs, ensuring reliable performance in a compact and functional design.
The cone-shaped anti-vibration mount is an essential component designed to minimize vibrations and noise in mechanical and industrial applications. Made from high-quality materials, such as natural or synthetic rubber and durable steel, this cone-shaped mount offers effective protection against dynamic stresses. Its compact and robust structure makes it perfect for ensuring stability and comfort in environments subject to intense movement, such as industrial machinery and heavy vehicles.
Benefits
Our cone-shaped anti-vibration mounts stand out for their reliability and versatility. Thanks to their optimized design, they offer excellent vibration isolation, reducing wear on mechanical components and improving operating comfort. The possibility of choosing between different rubber compounds and metal finishes allows the product to be adapted to specific customer requirements. Furthermore, our focus on quality and production process control guarantees a durable product that complies with the highest standards.
Main features
This anti-vibration mount is characterized by its high vibration absorption capacity, both axial and radial, thanks to its conical shape that distributes loads evenly. It is available in different sizes and configurations, with galvanized or stainless steel options to resist corrosion. The rubber used is selected to ensure flexibility and resistance to extreme temperatures and chemicals. The design allows for quick and easy installation, with excellent stability even under intense working conditions.
Applications
Cone bearing for vehicle cabins is widely used in sectors such as automotive, construction, shipbuilding, and railways. It is ideal for isolating driver cabins, engines, pumps, and ventilation systems, where it is necessary to reduce vibrations and noise to improve safety and comfort. Its robustness also makes it suitable for applications in extreme environments, such as agricultural machinery, excavators, and electric generators, ensuring reliable performance in high-stress contexts.
Download PDF catalogue:

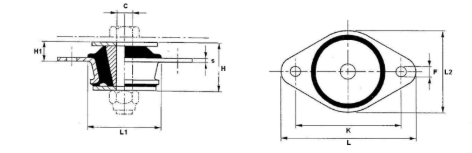

| Code | H | K | L | F | L2 | s | C | H1 |
| 90930 | 27,5 | 64 | 84 | 6,5 | 50 | 2 | 8 | 12,5 |
| 90930A | 30,5 | 64 | 84 | 6,5 | 46 | 2 | 8 | 12,5 |

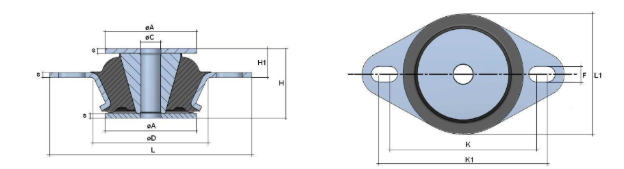

| Code | K | K1 | L | L1 | øA | øC | øD | H | H1 | s | F | Load (Kg) |
| 46288/45 | 61 | 70 | 84 | 50 | 38 | 8,2 | 46 | 29 | 12 | 2 | 6,5 | 40 |
| 46288/60 | 61 | 70 | 84 | 50 | 38 | 8,2 | 46 | 29 | 12 | 2 | 6,5 | 70 |
| 46288/70 | 61 | 70 | 84 | 50 | 38 | 8,2 | 46 | 29 | 12 | 2 | 6,5 | 105 |

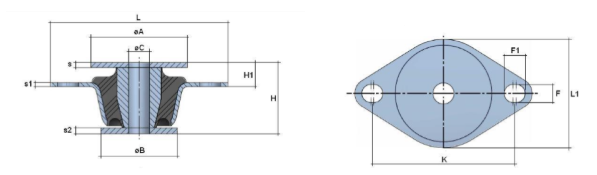

| Code | K | øC | øA | øB | L | L1 | H | H1 | F | F1 | s | s1 | s2 | Carico(Kg) |
| 46289/45 | 70,9 | 10,5 | 48 | 38 | 88,4 | 54 | 35,5 | 12 | 9 | 11 | 2,5 | 2 | 3 | 50 |
| 46289/60 | 70,9 | 10,5 | 48 | 38 | 88,4 | 54 | 35,5 | 12 | 9 | 11 | 2,5 | 2 | 3 | 90 |
| 46289/70 | 70,9 | 10,5 | 48 | 38 | 88,4 | 54 | 35,5 | 12 | 9 | 11 | 2,5 | 2 | 3 | / |
Choose from a variety of types and sizes of anti-vibration mounts for your technical projects:
Contact our experts to develop a customized solution. Larosi offers a wide range of anti-vibration devices with same-day delivery throughout Europe. Contact us to find out how we can help you!
