Cone bearing for vehicle cabins with slots is a conical device designed to reduce vibrations and noise, equipped with slots for versatile mounting. Made of natural rubber and galvanized steel, it guarantees high stability and resistance. Ideal for cabins, industrial machinery, and mechanical systems, it offers secure and durable fastening. Available in different hardnesses, it adapts to various applications, ensuring optimal performance in a practical and robust design.
The cone-shaped anti-vibration mount with slots is a device designed to reduce vibrations and shocks in industrial and mechanical applications. Made from a combination of high-quality rubber and metal, this cone-shaped mount features slots in the rubberized part that allow for effective vibration absorption in both axial and radial directions. It is an ideal solution for ensuring stability and comfort in environments subject to dynamic stresses, such as off-road vehicles, heavy machinery, and transportation systems.
Benefits
Choosing cone bearing for vehicle cabins with slots means investing in a product that guarantees safety, durability, and excellent performance. Their advanced design, with strategically placed slots, allows them to handle high loads and extreme stresses while maintaining optimal vibration isolation. In addition, the materials used, such as special steels and customizable rubber compounds, ensure resistance to external agents and long life even in difficult operating conditions. Our many years of experience in the sector allow us to offer reliable and tailor-made solutions for every need.
Main features
Cone-shaped anti-vibration mounts with slots stand out for their ability to absorb high axial and radial deflections, ensuring high horizontal rigidity and excellent vibration isolation. They are available in different types of steel (e.g., stainless steel) and rubber compounds to suit a wide range of applications. The design includes an anti-tear system that complies with standards such as the “Rops Test,” ensuring safety in the event of impact. Ease of installation and customization options complete the features of this innovative product.
Applications
These mounts are used in numerous sectors, including earthmoving, agriculture, railways, and shipping. They are ideal for isolating vibrations in engines, driver cabins, off-road vehicle chassis, and cooling systems. Their versatility also makes them perfect for generators, compressors, and electrical control units, offering an effective solution for reducing noise and vibrations in machinery subject to dynamic loads. Thanks to their robustness, they are particularly suitable for harsh environments and high-intensity applications.
Download PDF catalogue:

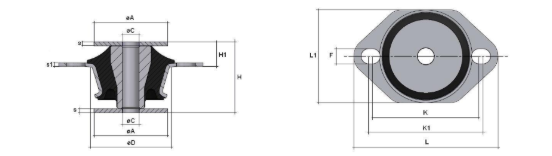

| Code | K | K1 | L | L1 | øA | øC | øD | H | H1 | s | s1 | F | Load (Kg) |
| 60511/45 | 78 | 84 | 106 | 68 | 54 | 12,2 | 60 | 52 | 18 | 3 | 2,5 | 11 | 100 |
| 60511/60 | 78 | 84 | 106 | 68 | 54 | 12,2 | 60 | 52 | 18 | 3 | 2,5 | 11 | 180 |
| 60511/70 | 78 | 84 | 106 | 68 | 54 | 12,2 | 60 | 52 | 18 | 3 | 2,5 | 11 | 270 |

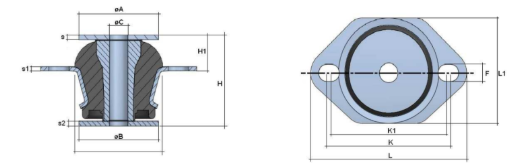

| Code | K | K1 | øC | øA | øB | L | L1 | H | H1 | F | s | s1 | s2 | Load (Kg) |
| 60512/45 | 84 | 78 | 12,5 | 54 | 54 | 106 | 68 | 55,5 | 21,5 | 11 | 3 | 2,5 | 3 | 120 |
| 60512/55 | 84 | 78 | 12,5 | 54 | 54 | 106 | 68 | 55,5 | 21,5 | 11 | 3 | 2,5 | 3 | 170 |
| 60512/70 | 84 | 78 | 12,5 | 54 | 54 | 106 | 68 | 55,5 | 21,5 | 11 | 3 | 2,5 | 3 | 270 |

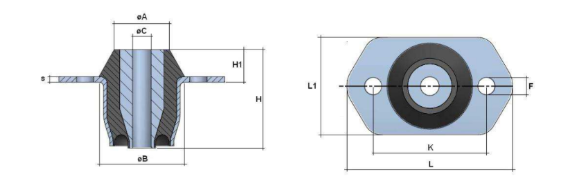

| Code | K | K1 | øC | øA | øB | L | L1 | H | H1 | F | s | Load (Kg) |
| 61134/45 | 70 | 44 | 12 | 40 | 61,5 | 120 | 70 | 71 | 23,5 | 11 | 4 | 250 |
| 61134/60 | 70 | 44 | 12 | 40 | 61,5 | 120 | 70 | 71 | 23,5 | 11 | 4 | 450 |
| 61134/70 | 70 | 44 | 12 | 40 | 61,5 | 120 | 70 | 71 | 23,5 | 11 | 4 | 690 |
| 61132/45 | 82 | 13,5 | 40 | 61,5 | 120 | 70 | 71 | 23,5 | 12,5 | 4 | 250 | |
| 61132/60 | 82 | 13,5 | 40 | 61,5 | 120 | 70 | 71 | 23,5 | 12,5 | 4 | 450 | |
| 61132/70 | 82 | 13,5 | 40 | 61,5 | 120 | 70 | 71 | 23,5 | 12,5 | 4 | 690 |
Purchase anti-vibration mounts in different configurations and sizes to suit your needs:
Talk to our team to find the solution that best suits your project. Larosi offers a wide range of vibration dampers with immediate shipping throughout Europe. Find out more today!
