MARINFLEX rectangular anti vibration marine mounts are designed to isolate vibrations and noise in marine and industrial applications. Made from natural rubber with a specific compound and galvanised steel, they offer excellent resistance to static and dynamic loads. Ideal for marine engines, generators and pumps, they guarantee stability and durability. Available in different hardnesses, they adapt to various needs, ensuring reliable performance in a robust and compact design.
Thanks to their rectangular shape, these mounts offer a wide and stable base, ideal for ensuring effective isolation from vibrations. Made from advanced materials, rectangular MARINFLEX mounts protect equipment and surfaces, extending the service life of machinery in demanding environments.
Benefits
Choosing MARINFLEX rectangular mounts means relying on a robust and versatile solution designed to meet the needs of marine and industrial applications. Their rectangular structure ensures even weight distribution, reducing the risk of unwanted vibrations and improving operational stability. Easy to install and highly resistant, these mounts offer an excellent balance between high performance and durability, making them an ideal choice for those seeking quality and reliability. Other types of MARINFLEX will be presented on other pages.
Main features
MARINFLEX rectangular mounts combine a high-strength steel base with a special rubber anti-vibration element designed to effectively absorb vibrations. Their rectangular shape ensures a larger contact surface, ideal for heavy machinery or marine applications. They are resistant to corrosion, salt water, oils and extreme temperatures, ensuring reliable performance even in harsh environmental conditions. Available in different sizes, they adapt to a wide range of needs.
Applications
These mounts are perfect for marine applications, such as boat engines, generators and propulsion systems, where vibration reduction is essential for comfort and safety. They are equally effective in industrial environments, such as production plants or heavy-duty machinery. Their robustness makes them ideal for sectors such as shipbuilding, the energy industry and port logistics, where stability and resistance are key.
Download PDF catalogue for MARINFLEX rectangular anti vibration marine mounts:

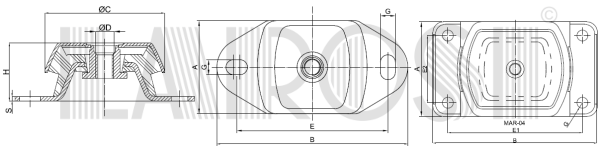

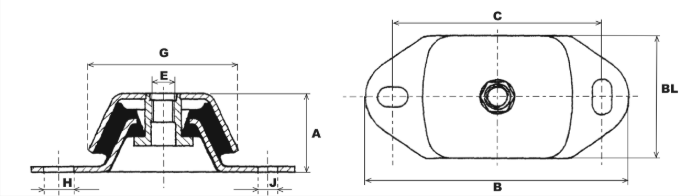

| Article | SH | G | A | BL | E | HxJ (H1xJ1) | C | B | S | Load (Kg) |
| 96120 | 45 | 80 | 38 | 60 | M12 | 14×11 | 100 | 120 | 3 | 40,00 |
| 55 | 80 | 38 | 60 | M12 | 14×11 | 100 | 120 | 3 | 60,00 | |
| 65 | 80 | 38 | 60 | M12 | 14×11 | 100 | 120 | 3 | 88,00 | |
| 75 | 80 | 38 | 60 | M12 | 14×11 | 100 | 120 | 3 | 120,00 | |
| 96183 | 45 | 104 | 49 | 75 | M16 | 30×13 (20×13) | 140 | 183 | 4 | 145,00 |
| 55 | 104 | 49 | 75 | M16 | 30×13 (20×13) | 140 | 183 | 4 | 190,00 | |
| 65 | 104 | 49 | 75 | M16 | 30×13 (20×13) | 140 | 183 | 4 | 305,00 | |
| 75 | 104 | 49 | 75 | M16 | 30×13 (20×13) | 140 | 183 | 4 | 425,00 | |
| 96230 | 45 | 132 | 71 | 112 | M20 | 34×18 (26×18) | 182 | 230 | 5 | 333,00 |
| 55 | 132 | 71 | 112 | M20 | 34×18 (26×18) | 182 | 230 | 5 | 510,00 | |
| 65 | 132 | 71 | 112 | M20 | 34×18 (26×18) | 182 | 230 | 5 | 720,00 | |
| 75 | 132 | 71 | 112 | M20 | 34×18 (26×18) | 182 | 230 | 5 | 880,00 |
Select anti-vibration mounts of various types and sizes for your needs:
Contact our specialists to create a solution tailored to your project. Larosi offers a wide range of anti vibration systems with same-day shipping throughout Europe. Start working with us now!
