Conical antivibration foot mount (M) DP • Larosi Srl Italy

Conical antivibration foot mounts (M) DP are conical-shaped vibration dampers designed to effectively reduce vibration and noise. Made of natural rubber with galvanised steel reinforcement, they ensure stability and reliable attachment. Ideal for light machinery, industrial equipment and sensitive applications, they offer elasticity and durability. Available in different hardnesses to suit specific needs, they combine optimum performance with a compact and functional design.

order or consult our team

Parabolic conical vibration dampers with a male foot (PM), i.e. with a male connection (external thread or pivot end), are designed to effectively suppress vibrations in systems that require reliable attachment and isolation from dynamic stresses.

Their parabolic conical shape ensures optimal load distribution and increased ability to absorb vibration energy, making them particularly useful in industrial systems (e.g. machine tools, compressors, fans), in the automotive sector (engine or suspension fastenings) and in heating, ventilation and air conditioning (HVAC) systems.

The male connection allows easy integration into systems with internal threads, offering ease of assembly and versatility of use.

check our range of cylindrical vibration isolators

These vibration dampers help reduce mechanical stress, prevent premature wear of equipment and prolong its service life. They effectively reduce noise, protect against material fatigue failure and improve the operational stability of systems. The parabolic shape optimises the damping properties, which is particularly effective under high or varying loads, such as when operating heavy machinery or in seismically active areas.

The compactness, robustness and versatility of the male connection make these vibration dampers ideal for use in harsh environments, including aggressive ones, ensuring reliability and ease of maintenance.

Download the Conical antivibration foot mount (M) DP catalogue in pdf format:

download catalogue

Article	Dimensions				Load (daN) 55Sh	Rocam	Stainless Steel

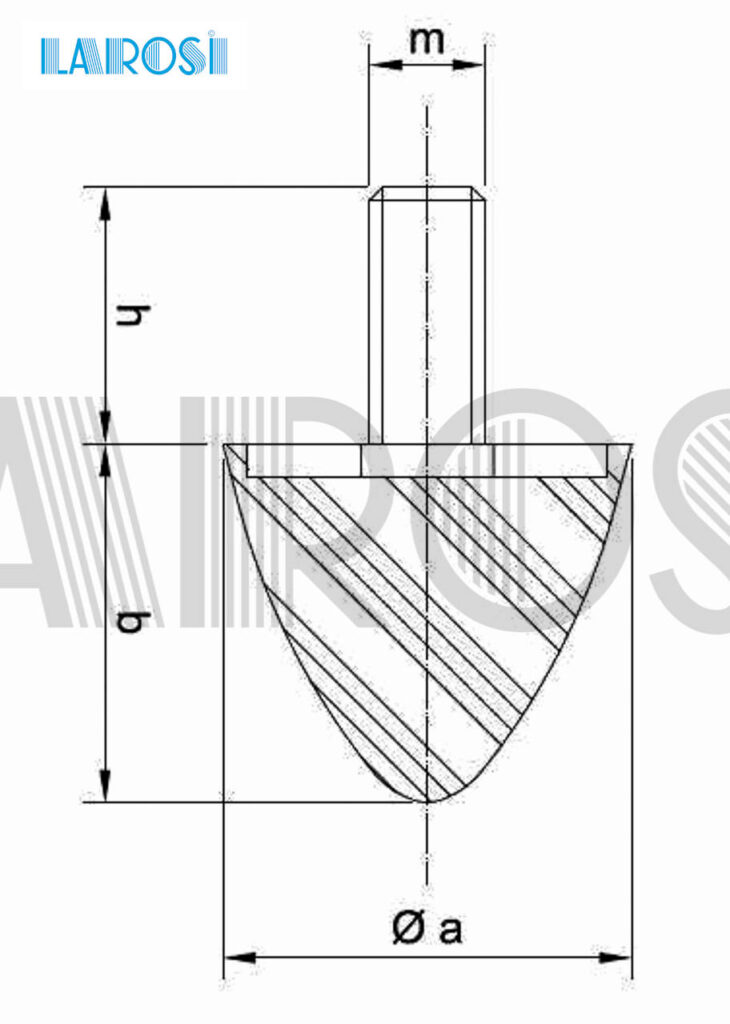

Article	øD	h	øC	F	Load (daN) 55Sh	Rocam	Stainless Steel
PC 001 51 5	15	15	6	18	30	95000
PC 001 71 3	17	13	6	18	*	95001
PC 00201 5	20	15	6	18	*	95975
PC 002024	20	24	6	18	55	95002
PC 002025	20	25	6	18	20	95003
PC 0021 24	20	24	6	15	51	95004
PC 00221 2	22	12	8		*	95005
PC 002225	22	25	6		*	95006
PC 002255	22	25	8	25	15	95007
PC 002425	24	25	6	18	*	95600	95600X
PC 002435	24	35	6	18	*	95009
PC 00251 0	25	10	6	18	20	95 010
PC 00251 7	25	17	6	18	20	95011
PC 00251 7M8	25	17	8	15	20	95011 M8
PC 00251 9	25	19	6	18	20	95 012
PC 00251 9M8	25	19	8	20	20	9501 2M8
PC 002520M8	25	20	8	23	20	9501 3M8
PC 002522	25	22	6	18	20	95 014
PC 002522M8	25	22	8	18	20	9501 4M8
PC 002525	25	25	6	18	20	95 016
PC 002530	25	30	6	18	30	95 017
PC 002530M8	25	30	8	23	30	9501 7M8
PC 002830	28	30	8	20	*	95044
PC 002832M6	28	32	6	18	*	9501 8M6
PC 00301 5M6	30	15	6	14	34	9501 9M6
PC 003025	30	25	8	28	34	95020
PC 003030	30	30	8	23	34	95021
PC 003030M6	30	30	6	18	34	95021 M6
PC 003036	30	36	8	23	34	95022
PC 003036M6	30	36	6	18	34	95022M6
PC 003040	30	40	8	23	*	95023
PC 003050	30	50	8	18	*	95024
PC 003540	35	40	8	23	*	95025
PC 004030	40	30	8	23	23	95026
PC 004030M1 0	40	30	10	28	23	95026M1 0
PC 004035	40	35	8	25	39	95976
PC 004040	40	40	8	23	39	95027
PC 004044M1 0	40	44	10	27	39	95028M1 0
PC 004050	40	50	8	23	50	95029
PC 004060	40	60	8		39	95030
PC 004060M1 0	40	60	10		39	95030M1 0
PC 004530	45	30	8	23	*	95601	95601 X
PC 004540	45	40	8	20	*	95031
PC 004550M1 0	45	50	10	28	*	9944M1 0
PC 005035	50	35	10	25	*	95032
PC 005040	50	40	10		57	95033
PC 005040M8	50	40	8	23	57	95033M8
PC 005050	50	50	10	28	57	95602
PC 005050M8	50	50	8	23	57	95602M8	95602M8X
PC 005058	50	58	10	23	57	95034
PC 005058M8	50	58	8	28	57	95034M8
PC 005061	50	61	10	23	66	95035
PC 005063	50	63	10		66	95036
PC 005064	50	64	10	23	66	95037
PC 005064M8	50	64	8	28	66	95037M8
PC 005065M8	50	65	8	35	66	95038M8
PC 005067	50	67	10	28	66	95603	95603X
PC 005067M8	50	67	8	33	66	95603M8	95603M8X
PC 005550	55	50	10		*	95604	95604X
PC 005550M8	55	50	8	16	*	95604M8	95604M8X
PC 005680	56	80	10		*	95039
PC 005789	57	89	10	37	*	95040
PC 005880	58	80	10		*	95041
PC 006050	60	50	12	27	75	95042
PC 006060	60	60	12	37	75	95605	95605X
PC 006060M1 0	60	60	10		75	95605M1 0	95605M1 0X
PC 006065	60	65	12	32	75	95607
PC 006350	63	50	12	35	*	95608
PC 006350M1 0	63	50	10	35	*	95608M1 0
PC 006360	63	60	12		110	95609
PC 007258	72	58	12	37	550	95 617
PC 007285	72	85	12		*	95 618
PC 007570	75	70	12	37	*	95 619
PC 007589	75	89	12	37	850	95977
PC 007590	75	90	12	37	130	95627
PC 007676	76	76	12		110	95628
PC 009580	95	80	16	45	1 100	95629
PC 009583	95	83	16	45	750	95630
PC 009585	95	85	16		*	95631
PC 009696	96	96	16	47	*	95632
PC 01 0083	100	83	16	44	294	95606	95606X
PC 01 0085	100	85	16	46	*	95634
PC 01 0090	100	90	16	45	*	95635
PC 01 0095	100	95	16	44	*	95636
PC 01 0095M1 2	100	95	12	31	*	95636M1 2
PC 011 088	110	88	16	27	280	95637
PC 011 877	118	77	16	43	*	95638
PC 0401 50	40	150	10	28	*	95639
PC 0651 00	65	100	12	37	*	95640
PC 0651 00M1 0	65	100	10	28	*	95640M1 0
PC 1 001 20	100	120	16	44	*	95641
PC 1 001 20M1 2	100	120	12	31	*	95641 M1 2
PC 11 01 20	110	120	12	34	280	95642
PC 11 51 36	115	136	16	43	1 700	95643
PC 11 51 40	115	140	16	44	*	95644
PC 1 251 00	125	100	16	43	340	95645
PC 1 651 95	165	195	16	43	3 900	95645

Special non-standard sizes available

We adapt our vibration dampers to ensure perfect compatibility with your applications. Do you require unusual threads, diameters, lengths or screws? Our technicians can realise them. Looking for a unique size? Contact our team now!
