Cylindrical anti-vibration mounts model (PC) Conical Pyramid Mounts ‘DC’ are anti-vibration mounts with a conical pyramid design, ideal for absorbing vibrations and noise. Made of natural rubber with galvanised steel reinforcement, they offer a stable base and secure fastening.
Perfect for light machinery, precision instruments and industrial applications, they provide resilience and strength. Available in different hardnesses, they adapt to various requirements, combining effectiveness with a small footprint.
Conical pyramid-shaped vibration dampers with a male foot (DC), i.e. with a male connection (external thread or pin terminal), are designed to suppress vibrations and oscillations in systems that require high load resistance and effective isolation from dynamic stresses.
The pyramid shape provides increased rigidity and structural stability, as well as optimal vibration energy distribution, making them suitable for applications in heavy industrial equipment (e.g. presses, turbines, large pumps), in the automotive sector (chassis or engine fasteners) and in building structures for seismic protection.
The male connection facilitates assembly, allowing reliable integration into systems with internal threads, which is particularly useful in tight spaces or complex configurations.
These anti-vibration mounts effectively reduce mechanical stress, prevent premature wear of equipment and prolong equipment life. They help minimise noise, protect materials from fatigue failure and improve the overall reliability of systems.
The pyramid shape of the DCs offers superior damping characteristics under high loads, making them ideal for applications under intense vibration conditions, such as in the mining industry or when operating heavy machinery. The compactness, robustness and versatility of the male connection allow them to be used in aggressive environments, ensuring durability and ease of maintenance.
Download the Conical antivibration foot mount type A (M) DC catalogue in pdf format:

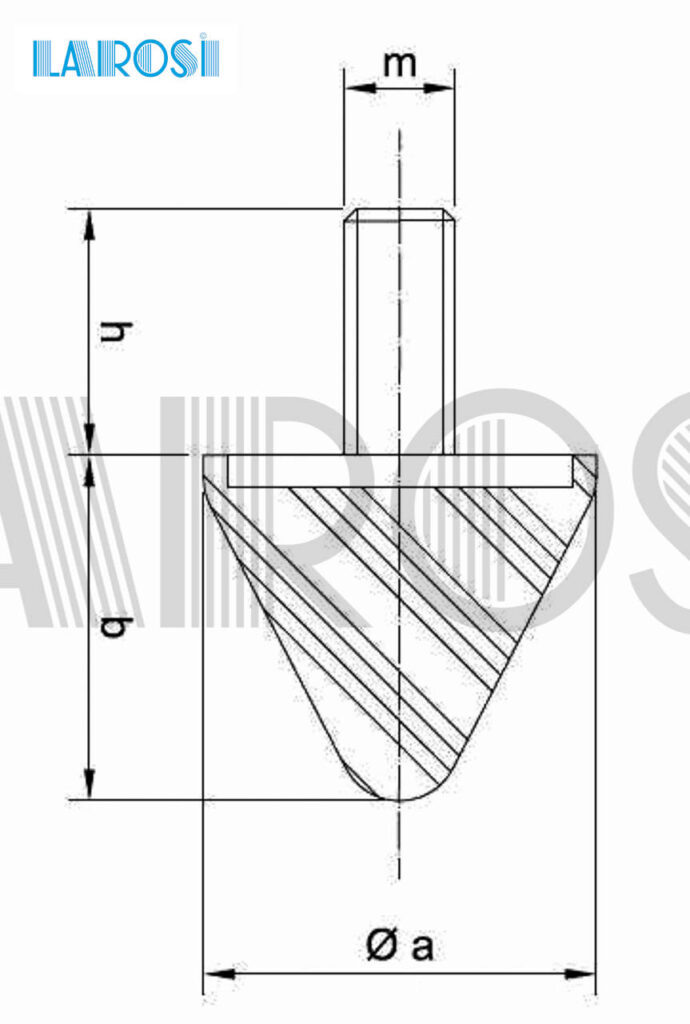

| Dimensions | |||
| a | b | m | h |
| 25 | 22 | M6 | 10 |
| 25 | 22 | M6 | 12 |
| 25 | 22 | M6 | 15 |
| 25 | 22 | M6 | 16 |
| 25 | 22 | M6 | 18 |
| 25 | 22 | M8 | 14 |
| 25 | 22 | M8 | 16 |
| 25 | 22 | M8 | 18 |
| 25 | 22 | M8 | 20 |
| 25 | 22 | M8 | 28 |
| 25 | 22 | M8 | 35 |
| 30 | 30 | M6 | 12 |
| 30 | 30 | M6 | 18 |
| 30 | 30 | M8 | 10 |
| 30 | 30 | M8 | 14 |
| 30 | 30 | M8 | 16 |
| 30 | 30 | M8 | 18 |
| 30 | 30 | M8 | 20 |
| 30 | 30 | M8 | 23 |
| 30 | 30 | M8 | 25 |
| 30 | 30 | M8 | 28 |
| 30 | 30 | M8 | 35 |
| 50 | 21 | M10 | 15 |
| 50 | 21 | M10 | 18 |
| 50 | 21 | M10 | 20 |
| 50 | 21 | M10 | 25 |
| 50 | 21 | M10 | 28 |
| 50 | 21 | M10 | 35 |
| 50 | 21 | M10 | 45 |
| 50 | 21 | M10 | 55 |
| 50 | 35 | M10 | 15 |
| 50 | 35 | M10 | 18 |
| 50 | 35 | M10 | 20 |
| 50 | 35 | M10 | 25 |
| 50 | 35 | M10 | 28 |
| 50 | 35 | M10 | 35 |
| 50 | 35 | M10 | 45 |
| 50 | 35 | M10 | 55 |
| 72 | 58 | M12 | 28 |
| 72 | 58 | M12 | 37 |
| 25 | 22 | M10 | 20 |
| 32 | 22 | M10 | 20 |
| 50 | 18 | M10 | 20 |
| 50 | 18 | M10 | 25 |
| 50 | 18 | M10 | 28 |
Special non-standard sizes available
We offer fully customisable vibration dampers to meet your technical requirements. Do you need non-standard screws, lengths, diameters or threads? Contact our offices: we can produce them. Need a special size? Write to us now!
